Overview

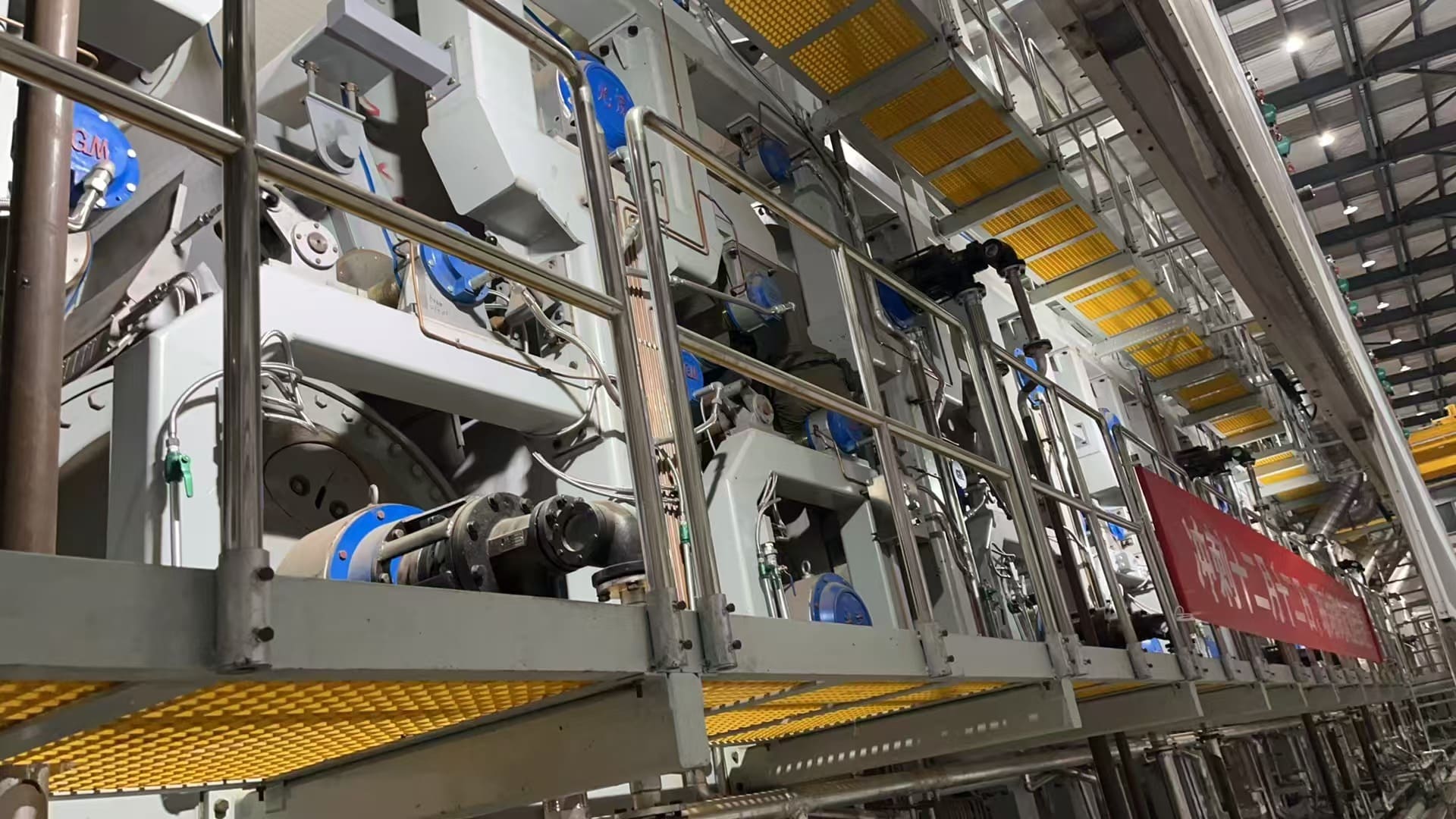

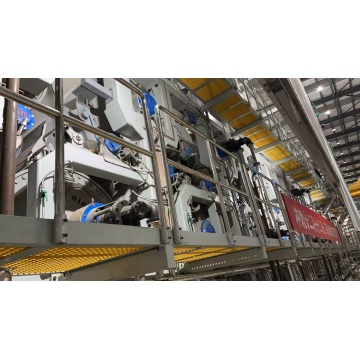

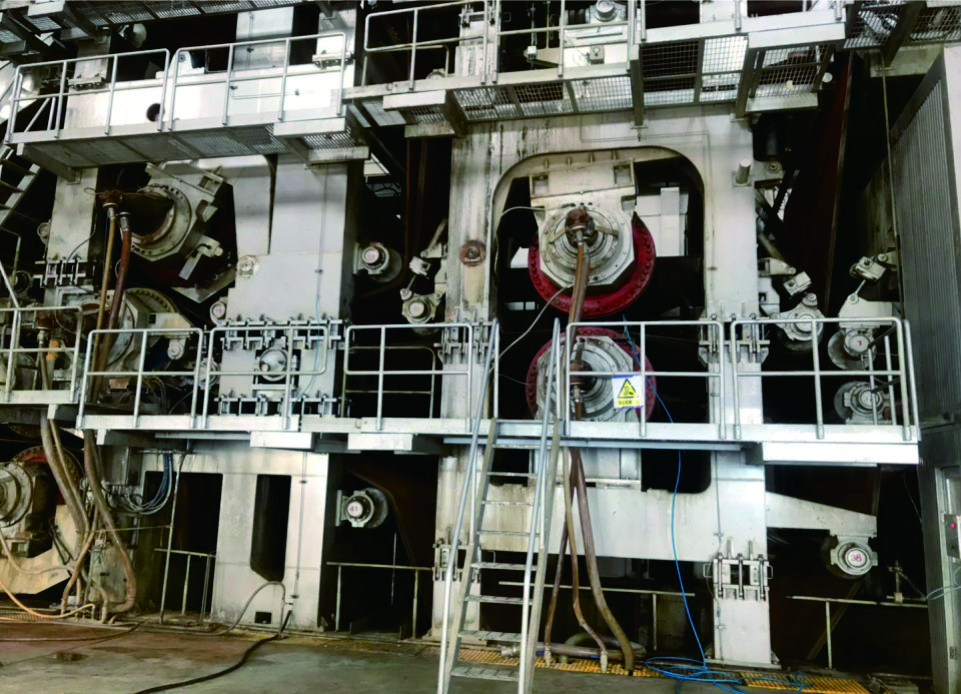

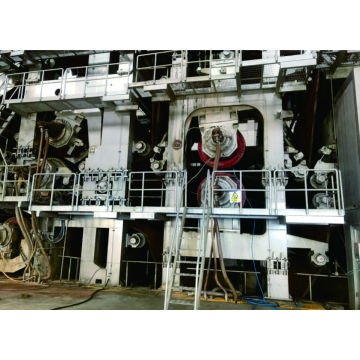

The press section of the
Paper Machine is a key component for efficient paper dewatering. It features a two - roll diameter press, with a total of two sections installed. The gas - tire pressure system employed ensures consistent and adjustable pressure application during the pressing process.
Within the press section, several additional components contribute to its smooth operation. These include guide rollers, which direct the paper's path; draw rollers that help in pulling the paper through the press; stretch rollers for maintaining paper tension; cleaning rollers to keep the rolls clean; a corrector to adjust the paper's alignment; a tensioner to fine - tune the paper's tautness; high - and low - pressure water pipes for roll cleaning and moisture control; a water tray to collect the drained water; a suction box to enhance dewatering; a scraper to remove any adhered materials; and a walk board for operator access and safety.
The press itself has a modular door - frame structure, constructed from welded steel. This design not only provides structural integrity but also allows for easy maintenance and component replacement, ensuring long - term reliable performance in the papermaking process.
