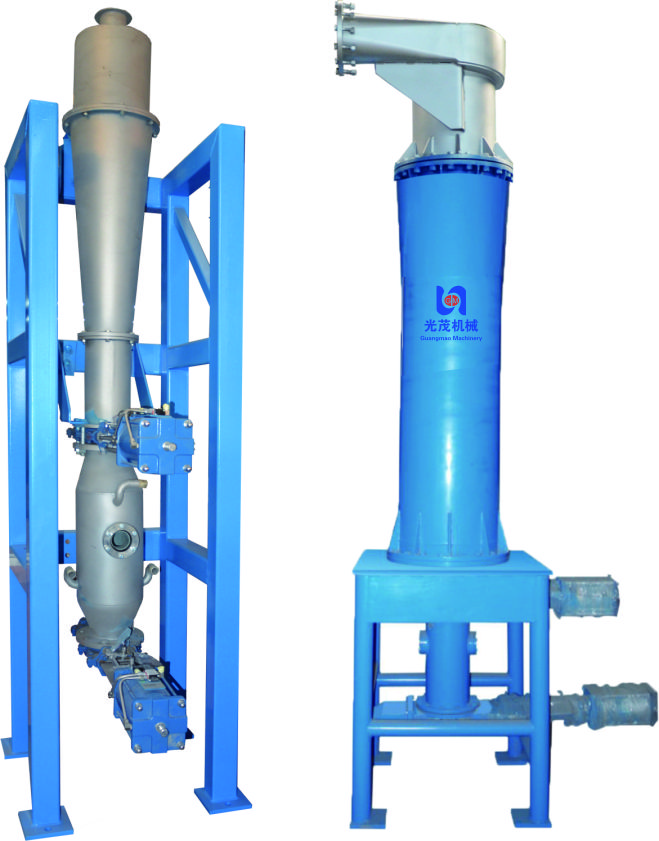

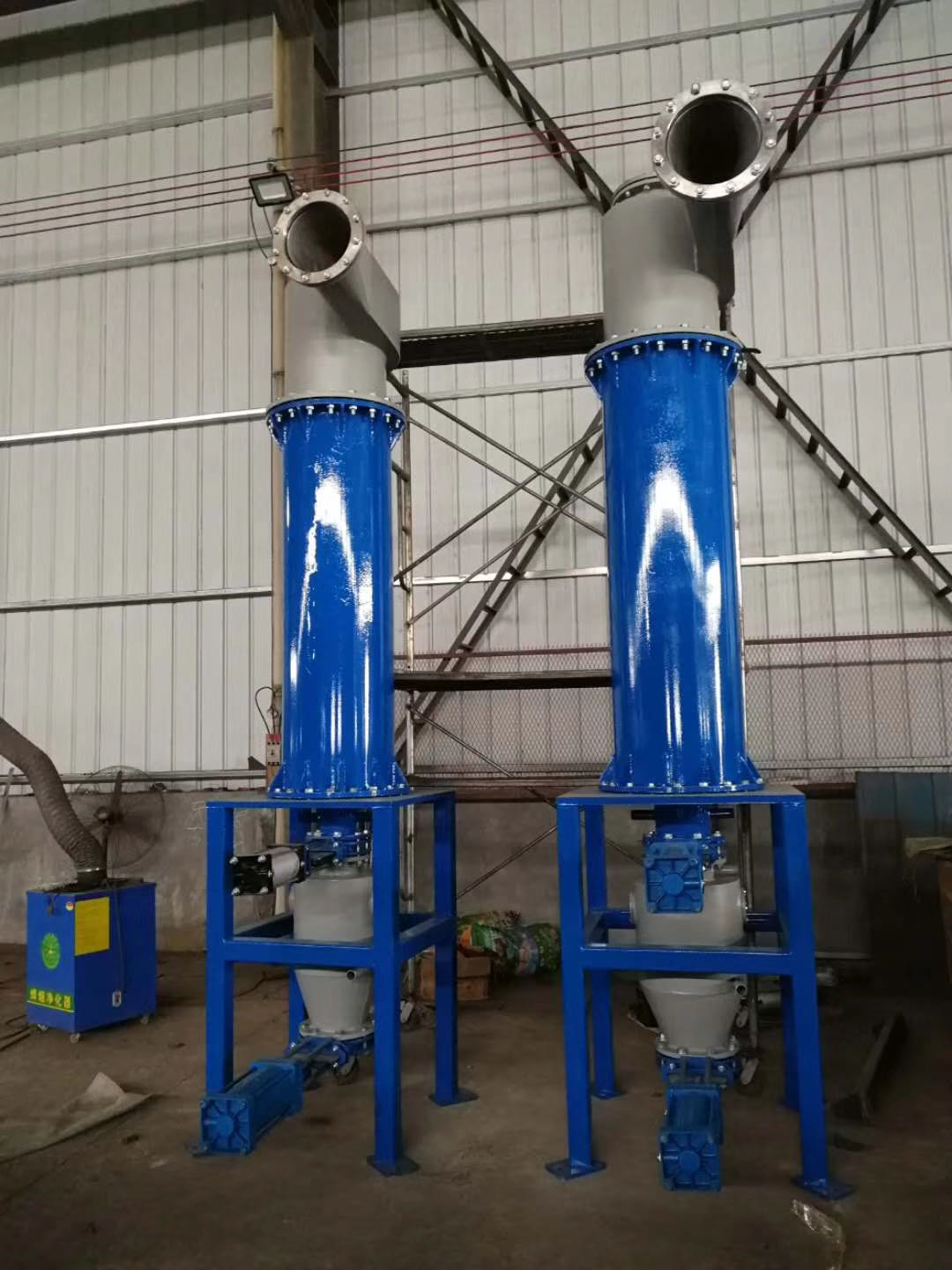

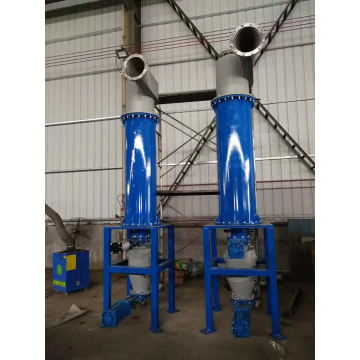

Double-cone high-efficiency high-density desander



The GMCS - II double - cone high - efficiency, high - consistency sand remover is designed based on the density difference between fibers and impurities. It effectively separates impurities from waste - paper pulp, purifying the pulp. This equipment features a small footprint, high production capacity, ease of operation, and its impurity - discharge opening is less likely to clog. With high cleaning efficiency, the pulp only requires a single pass through the sand remover. There's no need for special equipment for waste pulp. It prevents fiber outflow and has a pressure - resistant and wear - resistant cone body, ensuring a long service life.

Coating board paper machine, Special Paper Machine, Spare Parts





Model	GMCS-1	GMCS-2	GMCS-3	GMCS-4	GMCS-5	GMCS-6	GMCS-7
Production capacity	≥30	≥60	≥112	≥194	≥250	≥324	≥518
Throughput(m/min)	≥800	≥1400	≥2600	≥4500	≥5800	≥7500	≥12000
Consistency(%)	0.8-5
Pressure of inflow pulp(Mpa)	≥0.25
Pressure of outflow pulp(Mpa)	≥0.01
Pressure of washing water(MPa)	0.02MPa (pressure of inflow pulp+0.02MPa)
