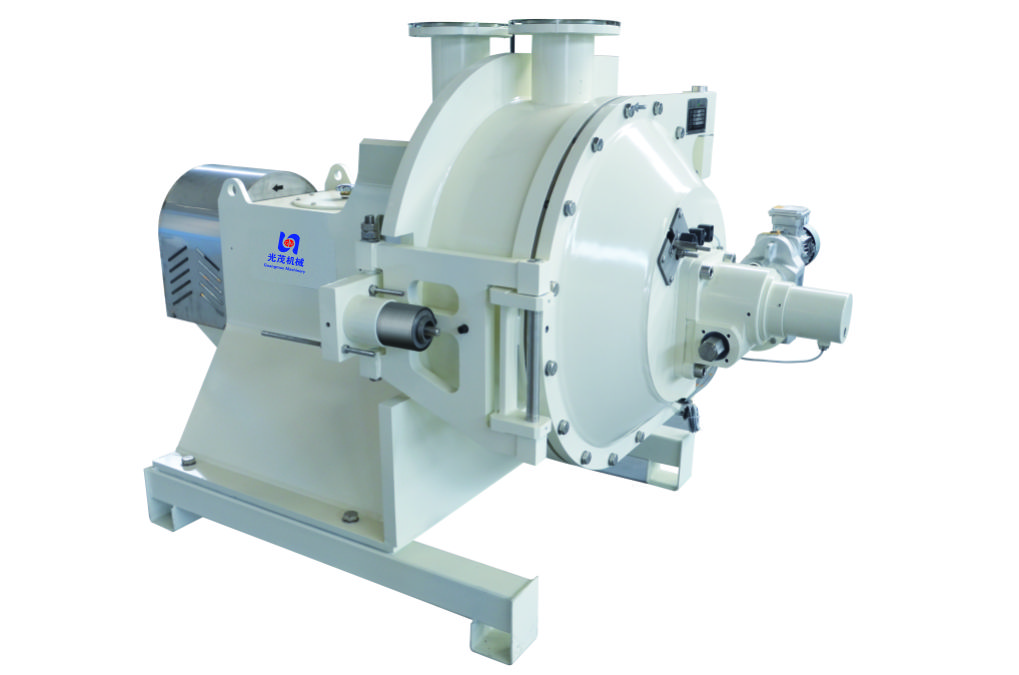

Double disc pulp refiner for paper making pulping

Name: Double disc pulp refiner for paper making pulping
Brand: Qinyang Guangmao Paper Making Machinery Co., Ltd
Rating: 4.6 (41 reviews)

Min. Order:	1 Set/Sets

Contact Now

Add to Basket
Share to:

Product Description

Overview

The double disc refiner is a crucial device in the pulp and paper industry. It consists of two rotating discs with specially designed grooves and teeth.

When in operation, the discs rotate in opposite directions, and the pulp fibers fed between them are subjected to intense shearing, grinding, and kneading forces.

This process effectively refines the fibers, improving their bonding ability and physical properties, thus enhancing the quality of the pulp.

It is widely used in pulp production for its high efficiency and excellent fiber refining effect, playing a vital role in improving paper strength and smoothness.

Performance Parameter

Model	GMPM380	GMPM450	GMPM550	GMPM600	GMPM650
Diameter of grinding disc	φ380	φ450	φ550	φ600	φ650
Production capacity	≥20	≥40	≥60	≥80	≥100
Consistency of input pulp	2-5	2-5	2-5	2-5	2-5
Pressure of input pulp	≥0.1	≥0.1	≥0.1	≥0.1	≥0.1
motor power	37	90	110	132	160
